Navis 3500 -13"- 750 braked 3 axle

10.532,80 excl. VAT
Product model:
Adjustable Stamps: 2
Boat Type: Tender, Sloop
Unique GYRO Roller System: No
Gross Weight: 3500 kg
Payload: 2765 kg
View more
Print PDF

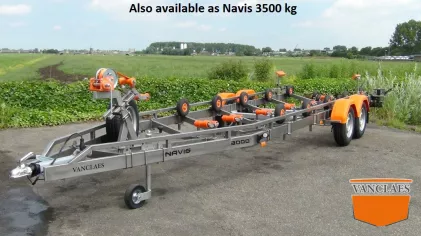

Vanclaes Navis braked boat trailer

The Vanclaes Navis braked boat trailer is suitable for Sloops and Tenders with a continuous keel.

The wiring is neatly concealed in the base frame and is connected to the socket of your car by a 13-pin (Jaeger type) plug. The entire basic frame of this boat trailer as well as the steel parts of the loading system and the winch post are made entirely of stainless steel.

By using stainless steel instead of the standard hot-dip galvanized steel in the market, the Vanclaes trailers have the advantage that they are much lighter with an often even stronger and more robust chassis. So in addition to the enormous qualitative and aesthetic advantages of this much more luxurious and beautiful material, a weight saving of +/- 25% is also a fact, which results in a higher load capacity and more possibilities for applying fine and practical options that you can help during driving as well as on the trailer ramp.

This boat trailer has two light bars that can be extended over a length of one meter and are equipped with 100% waterproof LED lighting. So you do not have to remove first the lighting from the boat trailer before launching the boat.

The hot-dip galvanized and then anthracite powder-coated braked axle line is from the German top brand WAP and is equipped with stainless steel water-resistant compact bearings. If you choose the disc brakes option, 100% waterproof oil bearings are supplied as standard. In addition, every braked trailer comes standard with shock absorbers on each axle line. The overrun brake is also standard, after the hot-dip galvanizing, anthracite powder coated.

The Vanclaes bow rollers are made of a plastic material. The keel rollers are made from Polyurethane. Both the keel and bow rollers are 100% scratch and scuff free.

The winch post and the bow support can easily be adjusted in length and height. The keel and bow rollers that your boat is on can also be moved in height and / or lengthwise. The automatically braked luxury safety hand winch comes standard with a solid winch belt. For safe transport, two adjustable stamps are mounted on the rear of the trailer.

All Vanclaes Navis models come standard with a centering device with scratch and scuff-free Polyurethane foam rollers.

The prices of all Vanclaes braked road trailers are included costs of the mandatory C.O.C. document and removal fee for the tires. So complete and no surprises afterwards.

Reviews Navis 3500 -13"- 750 braked 3 axle

Add your comment

Boat details
Adjustable Stamps
Boat Type
Tender, Sloop
Unique GYRO Roller System
Gross Weight
3500 kg
Trailer specifications
2765 kg
Kim rollers
Keel roller
Tire size
13 inch
Trailer length
750 cm
3 Axles
Trailer width
230 cm
Trailer weight
735 kg
